Solenoid Lock (Go to Parent Category)

Solenoid Lock Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil.

This solenoid is durable and is designed for a small cabinet/door/safe. It has a slanted cut armature and a mounting bracket. The armature (metal slug) of the solenoid can be rotated 90, 180 or 270 degree to suit the position of the door just like a normal home door lock would.
R155
Price ex. VAT. Est. Weight: 148g. Stock: Out of stock [i].
  • Description

Technical Specifications

Operating Voltage 12V
Force & Stroke 50 grams @ 10mm
Power 8 Watts
Mounting Slots 4 slots of 6.8 x 3mm
Instulation Resistance 100M Ohms, 500V DC
Dielectric Voltage 700V DC per second
Life Cycle 1,000,000 cycles min

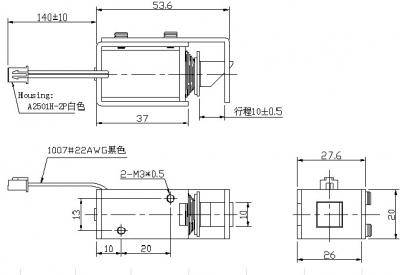

Dimensions

Dimensions
