MPY634 Analog Multipliers
Three analog multipliers are included in the kit. These are wide-bandwidth from Texas Instruments (MPY634). Each multiplier is a 14-pin IC and operates on internally provided +/-10V supply.
MPY634 Analog Multipliers
Three analog multipliers are included in the kit. These are wide-bandwidth from Texas Instruments (MPY634). Each multiplier is a 14-pin IC and operates on internally provided +/-10V supply.
MPY634 Analog Multipliers
Three analog multipliers are included in the kit. These are wide-bandwidth from Texas Instruments (MPY634). Each multiplier is a 14-pin IC and operates on internally provided +/-10V supply.
Breadboard area
General Purpose Area with 2.54mm/100mil pad spacing can be used to place additional components and expand set of excersises with new experiments.
DAC7821 D/A converter
There are two digital-to-analog converters (DAC) provided in the kit. Both are DAC7821 from Texas Instruments. They are 12-bit, parallel-input multiplying DACs.
DAC7821 D/A converter
There are two digital-to-analog converters (DAC) provided in the kit. Both are DAC7821 from Texas Instruments. They are 12-bit, parallel-input multiplying DACs.
Diodes
Two diode sockets are included on the board, which can be used as rectifiers in custom laboratory experiments. Two 1N4448 small signal diodes are delivered with the board.
Main power
The kit has screw terminals to connect +/-10V power supply. All the ICs on the board are internally connected to power supply.
TL082 OP-Amps Type I
Three TL082 OP-Amps are available on the board. Each IC has two amplifiers which are labeled A and B. OP-Amps Type I can be connected in the inverting configuration only.
TL082 OP-Amps Type II
Three TL082 OP-Amps are available on the board. Each IC has two amplifiers which are labeled A and B. OP-Amps Type II can be configured to act as inverting or non-inverting.
TL082 OP-Amps Type III
Three TL082 OP-Amps are available on the board. Each IC has two amplifiers which are labeled A and B. OP-Amps Type III can be used as voltage buffers.
TPS40200 DC-DC converter
TPS40200 is a non-synchronous buck converter which can be used to provied a resistor-selected 3.3V or 5V output, that deliveres up to 2.5A from up to 16V input bus.
TPS7250 LDO regulator
Low dropout linear voltage voltage regulator is capable of 200mA output current at 5V fixed output voltage level. It is a low quiescent current, low noice, high PSSR, fast start-up LDO.
Transistor sockets
Board comes with 2N3906 PNP and 2N3904 NPN general purpose bipolar transistors as well as BD250 P-channel MOS FET transistor.
Trimmers
There are two 1kO trimmers in the kit to enable the designer to obtain a variable voltage if needed for a circuit. These operate respectively in range from 0V to +10V, and -10V to 0V
Up-Close

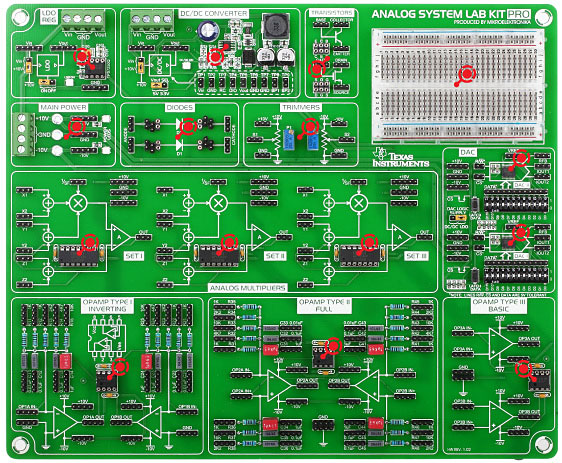

Hover your mouse over different parts of the board in order to view the details up-close.
